Industrial Liquid Filtration
Practical and economical single bag filter housings for industrial liquid filtration applications.
Monarch Asia Pacific supplies single chamber bag filter vessels for applications where one filter bag or cleanable basket provides suitable capacity for the required flow rate and solids loading.
Monarch Asia Pacific supplies single chamber bag filter vessels for industrial liquid filtration applications where one filter bag provides suitable filtration capacity for the required flow rate and solids loading. Single chamber vessels are a practical and economical choice for process water, chemical, manufacturing, food and beverage, mining, wastewater and general industrial services.
Available in a range of materials, sizes, pressure ratings and connection options, single chamber bag filter vessels can be selected to suit different operating conditions, filtration requirements and installation layouts.
Monarch can assist with vessel selection, filter bag compatibility, replacement baskets, fabricated supports, skid arrangements and practical installation considerations.

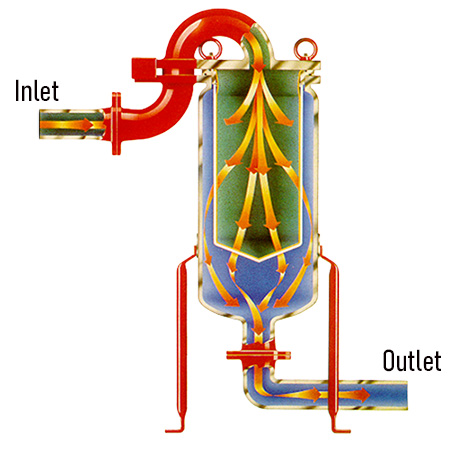

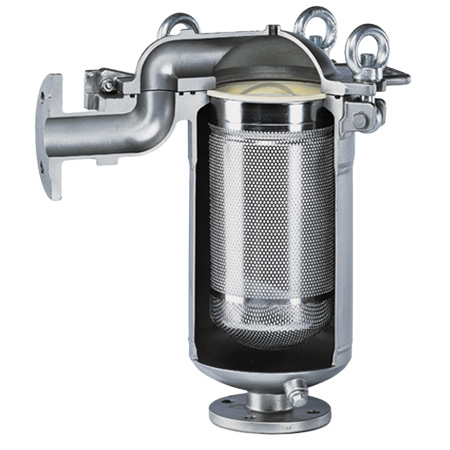

A single chamber bag filter vessel is a liquid filtration housing designed to hold one filter bag or one cleanable basket. Process liquid enters the vessel, passes through the filter media and exits the housing after suspended solids have been captured.
Single chamber bag filters are commonly selected where the required flow rate and solids loading can be handled by one filter bag. They are simple to operate, cost-effective to maintain and suitable for many industrial liquid filtration duties.
Depending on the vessel design and application, the housing may be fitted with a disposable filter bag or a reusable stainless steel basket.
Single chamber filter vessels are available to suit common industry-standard filter bag sizes.
| Bag Size | Indicative Flow Rate | Approximate Dimensions | Approximate Flow Area |
|---|---|---|---|
| Size 01 | 20,000 litres per hour | Ø178 mm × 420 mm | 0.24 m² |
| Size 02 | 40,000 litres per hour | Ø178 mm × 810 mm | 0.48 m² |
| Size 03 | 6,000 litres per hour | Ø102 mm × 230 mm | 0.08 m² |
| Size 04 | 12,000 litres per hour | Ø102 mm × 410 mm | 0.16 m² |
A straightforward and versatile filtration method for a broad range of industrial liquids.
Single chamber vessels provide a cost-effective solution where one filter bag can handle the required flow and solids loading.
Filter bags can be removed and replaced without complex servicing, helping simplify routine filtration maintenance.
Depending on the vessel and application, disposable filter bags or cleanable stainless steel baskets may be used.
Vessel material can be selected to suit compatible fluids, operating conditions and corrosion-resistance requirements.
Suitable for water, process liquids, chemicals, coatings, resins and many general industrial filtration duties.
Monarch can assist with selection, bag compatibility, fabricated supports, skids and installation considerations.
Select from cost-effective, general industrial, high-pressure, miniline and custom fabricated single bag filter vessels.

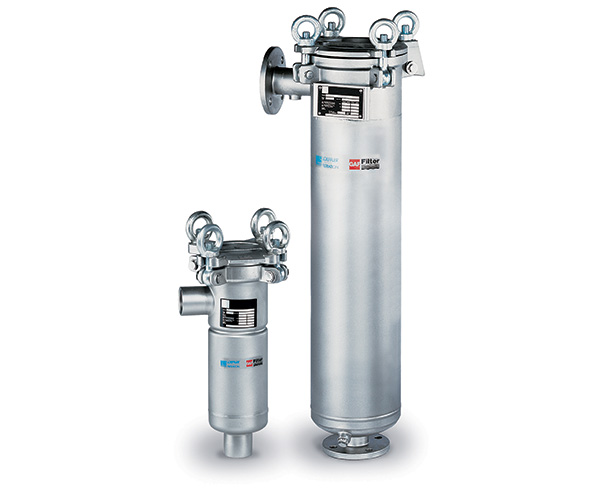

A cost-effective side-entry single bag filter housing for light-duty liquid filtration applications. Available in Size 01 and Size 02 configurations.

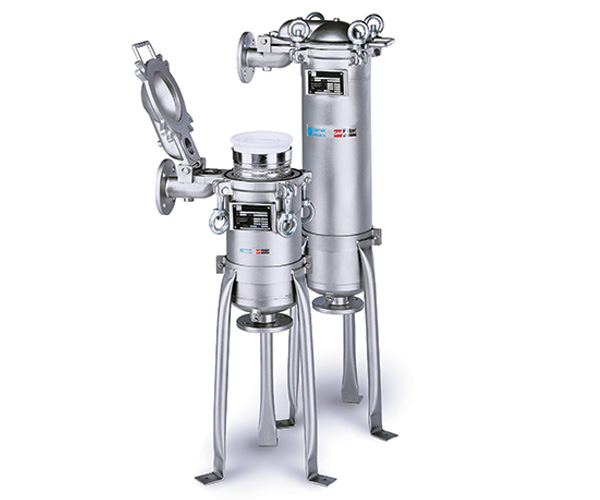

A topline single bag filter housing with a goose-neck inlet design that positions the bag opening at the top for convenient changeout.

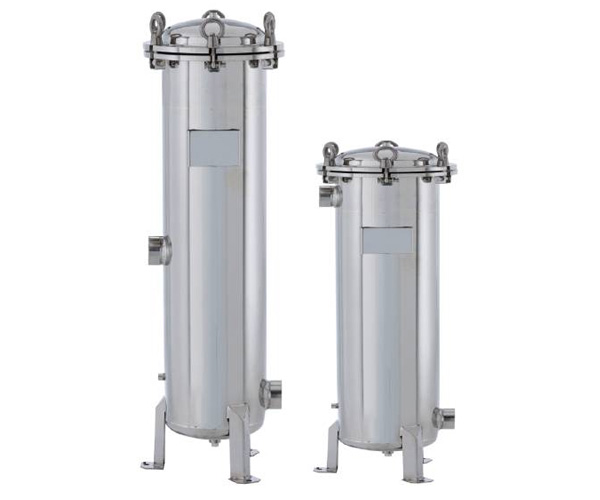

A widely used industrial side-entry single bag filter housing available in multiple sizes, materials and pressure classes.

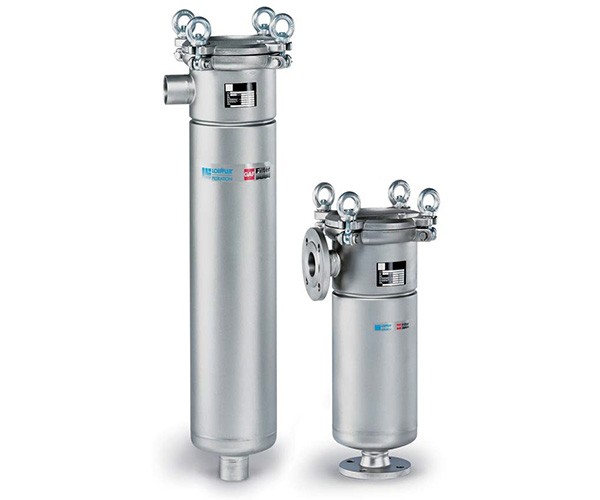

A versatile and cost-effective flowline single bag filter housing for general industrial liquid filtration duties.

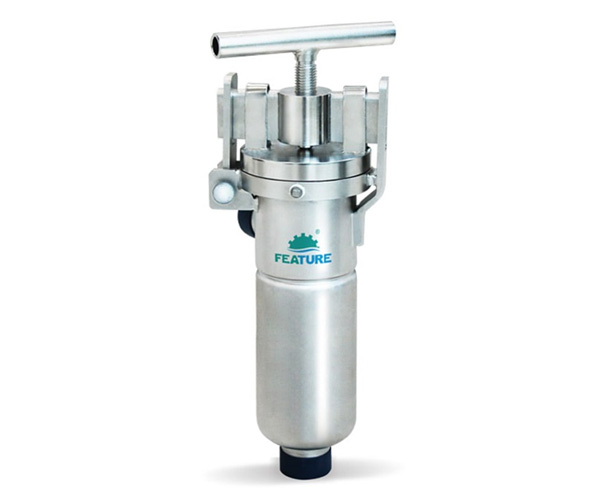

A compact T-handle single bag filter housing for smaller flow rates, miniline applications and selected higher pressure duties.

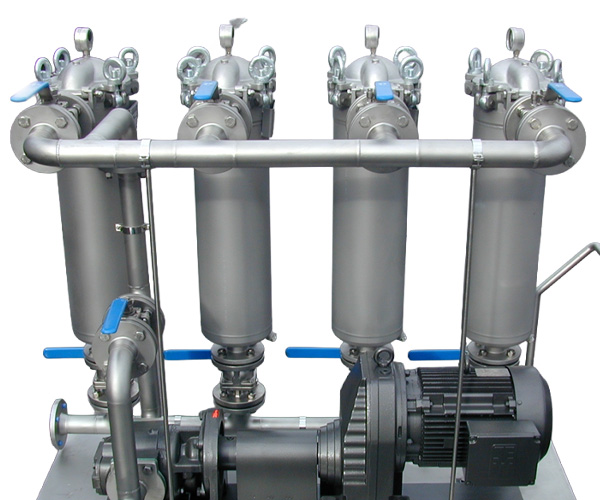

Custom fabricated or modified single bag filter vessels for applications requiring non-standard materials, connections, dimensions or configurations.
Correct vessel selection depends on the liquid, flow rate, pressure, temperature, solids loading and required filtration result. The filter vessel should be selected together with the correct filter bag or basket media.
Undersizing a vessel can result in excessive pressure drop, short filter bag life and frequent maintenance. Oversizing may add unnecessary cost or occupy more installation space than required.
Single chamber filter vessels can often be fitted with disposable filter bags or cleanable stainless steel baskets. Disposable filter bags are commonly used where straightforward changeout and a broad selection of micron ratings are required.
Cleanable stainless steel baskets may be suitable where reusable filtration media is preferred, where coarser protection is required, or where the process benefits from a robust perforated or mesh-lined basket.
Product Supply + Practical Engineering Support

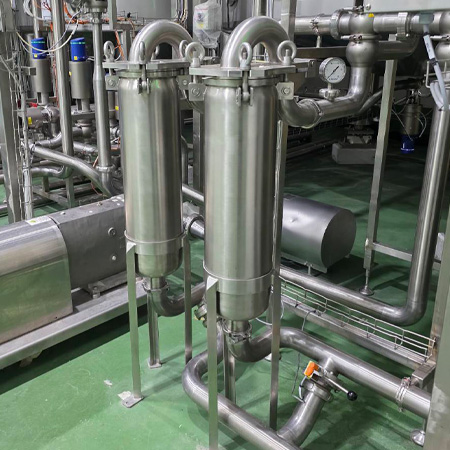

Monarch Asia Pacific combines industrial filtration product knowledge with practical workshop capability from our Brendale facility.
We can assist with vessel selection, application review, replacement baskets, fabricated supports, pipework considerations, filter skids and practical installation support.
Contact Monarch Asia Pacific to discuss your flow rate, fluid type, pressure, temperature, micron rating and connection requirements.
