Corrosion-Resistant Filtration Components
2205 duplex stainless steel screens and strainer baskets are used where a combination of corrosion resistance, mechanical strength and long service life is required in demanding industrial environments.
Monarch Asia Pacific manufactures custom 2205 perforated screens, drilled screens, filter screens, cone strainers and strainer baskets in Australia to suit seawater, chloride-rich, mining, chemical, oil and gas and other severe-service applications.
Standard 304 and 316 stainless steels are suitable for many industrial filtration applications, but some services require greater resistance to corrosion or higher mechanical strength.
2205 is a duplex stainless steel combining austenitic and ferritic phases. It is commonly considered for chloride-bearing environments because of its resistance to stress corrosion cracking, pitting and crevice corrosion, while also providing substantially higher mechanical strength than conventional austenitic stainless steels.
These properties can make 2205 attractive for large strainer baskets, mechanically demanding screens, seawater systems, high-flow applications and installations where corrosion resistance and structural durability are both important.
2205 is frequently considered where both corrosion resistance and mechanical durability are important.
Intake systems, seawater cooling, marine services and offshore applications where chloride exposure is significant.
Coarse filtration and equipment protection in desalination and brackish-water treatment systems.
Pipeline, process and equipment-protection strainers for corrosive or chloride-bearing oil and gas services.
Screens and baskets for aggressive process water, slurries and high-wear industrial environments.
Selected process streams where chloride content or corrosivity requires a higher-alloy construction.
Pump protection and coarse pre-filtration where cooling or process water creates a demanding corrosion environment.
Reusable screens and baskets for compatible wastewater duties requiring increased durability and corrosion resistance.
Large or reinforced screens where high flow, differential pressure and mechanical load are important design factors.
Products can be manufactured from drawings, supplied samples or equipment dimensions to suit the required filtration and mechanical duty.

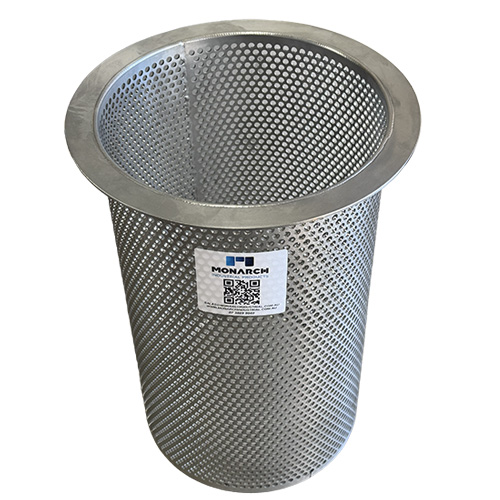

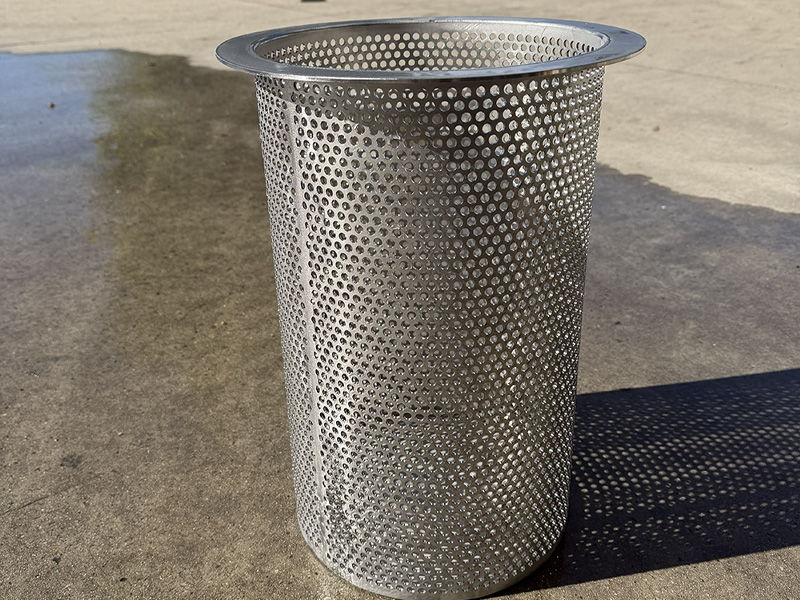

Formed or flat perforated 2205 screens for coarse filtration, equipment protection and structural filtration elements.

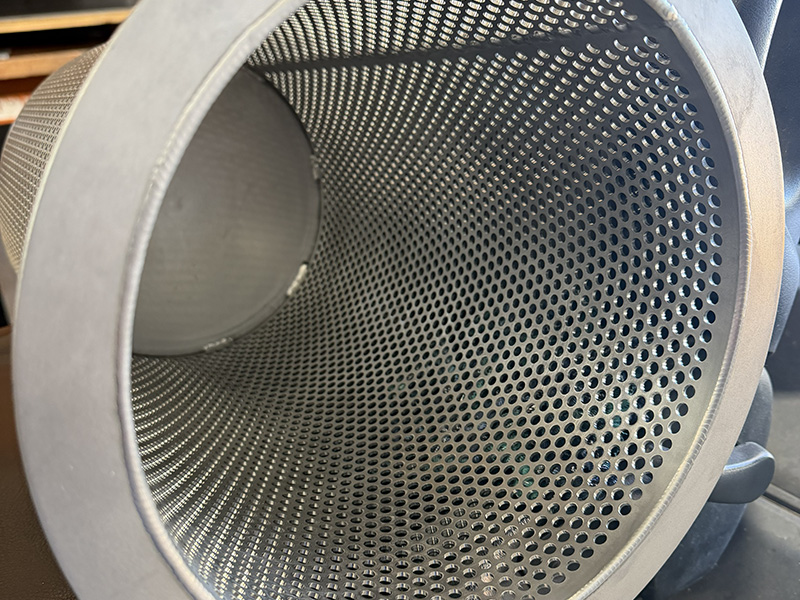

Drilled plate can provide an alternative where the required 2205 perforation pattern, thickness or open area is not readily available commercially.

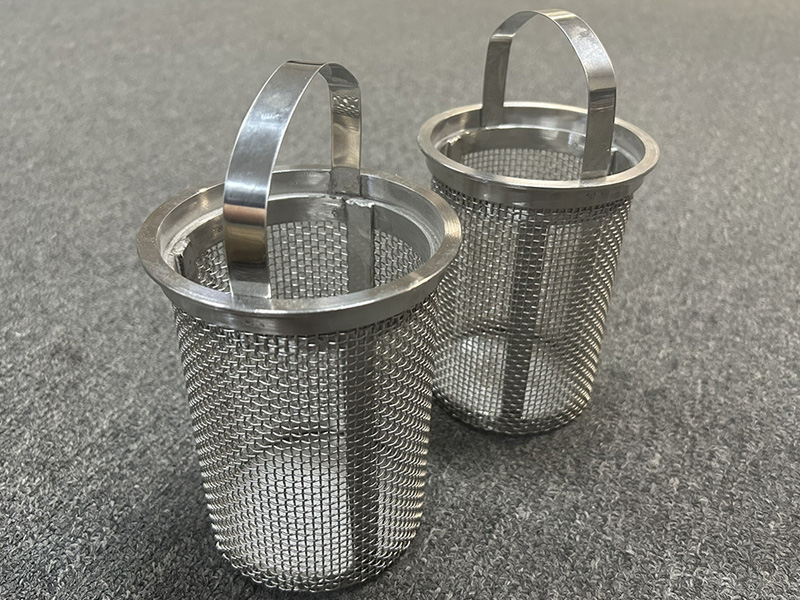

Perforated structural baskets with compatible mesh lining where finer particle retention is required.

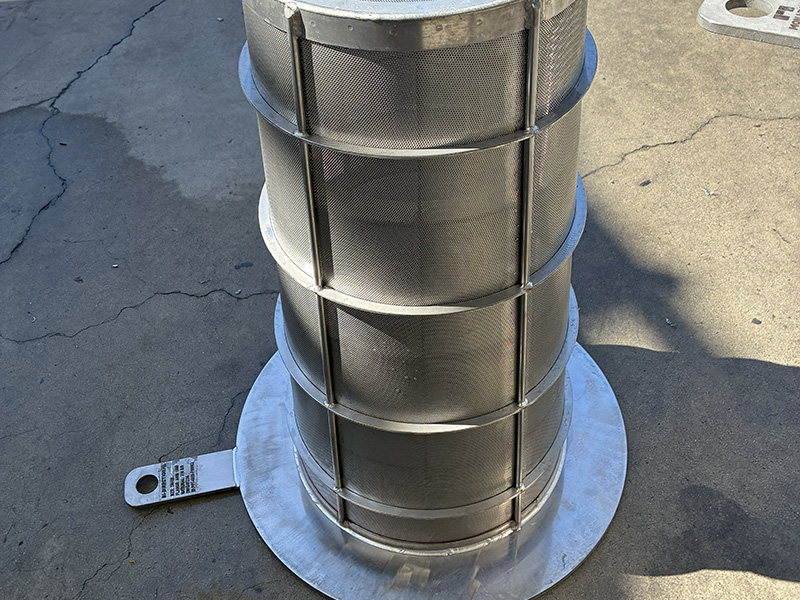

Support rings, heavier backing and structural features can be incorporated for large baskets or demanding differential-pressure service.

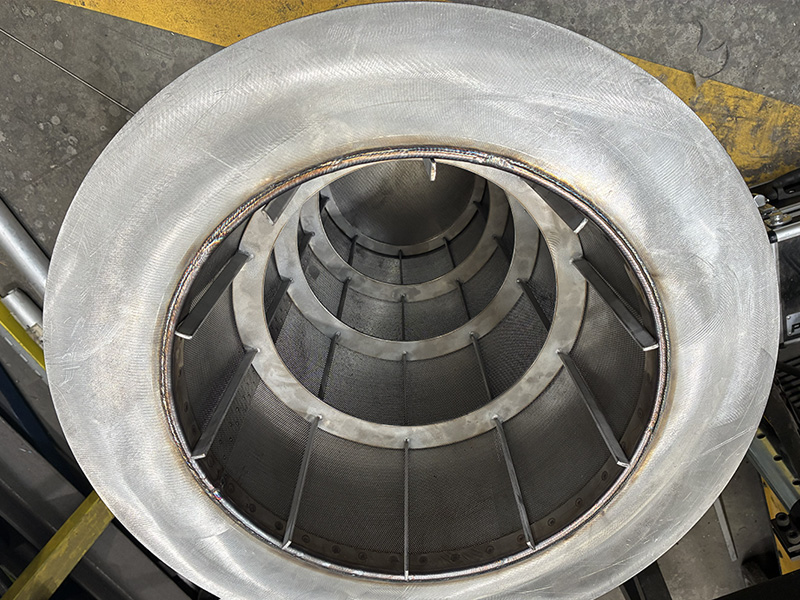

Custom cone, truncated cone and temporary strainer elements for commissioning and pipeline protection.

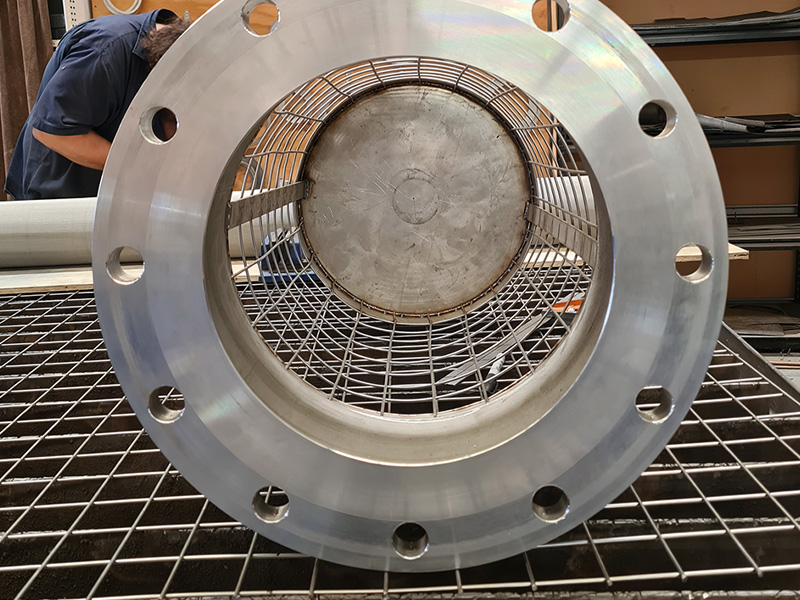

Custom intake, suction and replacement baskets for existing simplex, duplex and fabricated strainer housings.
The material grade is only one part of the design. Open area, screen geometry, strength and fabrication details remain critical.
2205 perforated sheet is not generally stocked in the same range of hole sizes, pitches, sheet dimensions and thicknesses as common 304 or 316 stainless steel.
Depending on the specification, material may need to be made to order, custom drilled or sourced subject to minimum quantities and additional lead time.
Where an exact perforation pattern is unavailable, Monarch can review practical alternatives that still meet the required retention, open-area and strength requirements.
Complete process and dimensional information helps ensure the screen or basket is suitable for both corrosion and mechanical duty.
Australian Manufacture + Workshop Support
Monarch Asia Pacific manufactures custom screens, baskets and strainer elements from our Brendale workshop. Designs can be produced from customer drawings, supplied samples or equipment dimensions.
Local fabrication capability allows us to support one-off replacement elements, project quantities, large-diameter baskets and non-standard filtration components where imported catalogue products are not suitable.
Large-diameter cone strainers for LNG and gas-processing projects.
View ApplicationTemporary strainers for commissioning, flushing and start-up.
View ApplicationCustom replacement baskets and screens for existing equipment.
View ApplicationSend Monarch Asia Pacific your drawing, dimensions, material specification and process requirements for review and quotation.
Request a Quote
