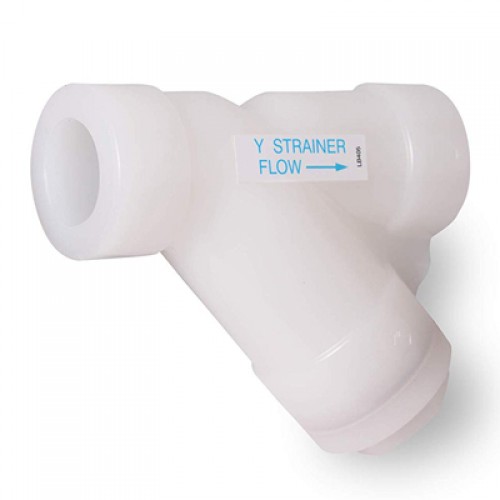

3/4" PVDF Y Strainer with Viton (FPM) o-rings. NPT Threaded end connections
- Product Code: YS50075T
- Natural PVDF per ASTM D3222 Type 1
- Socket Fusion Ends for IPS Schedule 40 / 80, or for SDR21 / 33 Piping
- All YS Series PVDF Y-Strainers have an FPM o-ring seal, and are assembled with silicone free lubricant.
- Each YS Series PVDF Y-Strainer includes one element cartridge (standard size is3/32" perf mesh in PVDF with some PTFE components)
- For other perforation options please consult sales.
| Size DN |
A mm |
B mm |
C mm |
D mm |
F mm |
G mm |
H mm |
J mm |
Soc/Thd kg |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 84 | 38 | 58 | 36 | 13 | 25 | 56 | 71 | 0.15 |
| 20 | 104 | 48 | 76 | 49 | 19 | 32 | 69 | 81 | 0.37 |
| 25 | 127 | 51 | 91 | 53 | 25 | 38 | 89 | 99 | 0.52 |
| Dimensions are subject to change without notice | |||||||||
YS50075T PVDF Y Strainer
- Brand: Hayward Flow Control
- Product Code: YS50075T PVDF Y Strainer
- Availability: Price & Delivery on Quote
-
