Factors to be Taken Account of when Selecting a Strainer:
- Fluid type (refer to our compatibility tables)
- Flow
- Viscosity
- Temperature – operating and design
- Pressure – operating and design
- Degree of filtration required
- Connection type i.e. flanged PN16, ASA150, screwed BSP, NPT
- Any special requirements i.e. heating jacket, magnets, mounting brackets, dp indicator/switch etc.
Brochures
Drawings
Oxford Filtration Model XS Series Stainless Steel simplex strainers provide a simple cost-effective way to separate particle impurities from fluid flow systems. Simplex models are designed for applications where temporary interruption of a batch process can be permitted for basket cleaning.
All strainers are individually pressure tested.
Material: Cast Stainless Steel
- BS EN10213 1.4408
- DIN 17445 GX5 Cr Ni Mo 18 10
- ASTM A351 CF8M
Pressure
- 16 bar (232 psi) @ 50°C
Thread Sizes
- Up to DN65 (2-1/2")
Basket Options
- Perforated basket from 0.5mm to 15mm
- Fine mesh lined from 50 micron
- All baskets and custom basket made in-House by Monarch

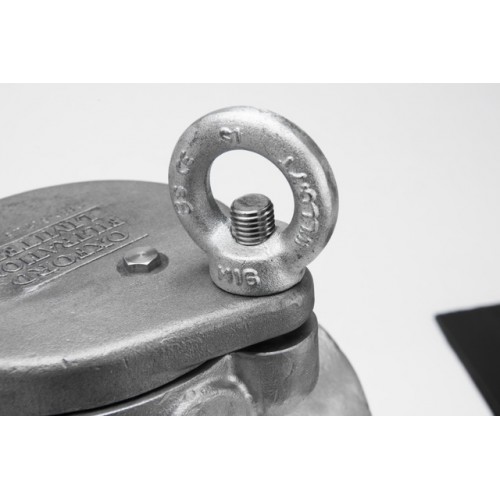

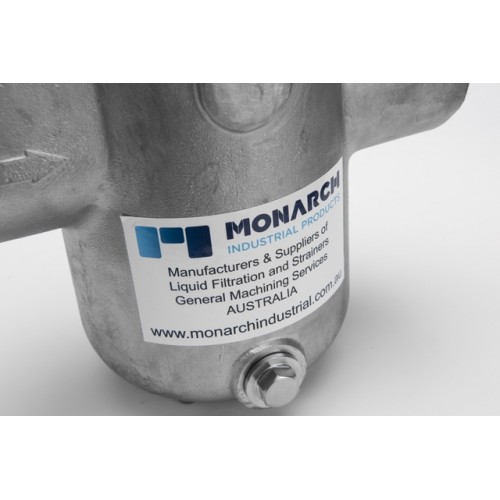

Oxford XSS Stainless Strainer Threaded
- Brand: Oxford
- Product Code: Oxford XSS Stainless Strainer Threaded
- Availability: Price & Delivery on Quote
-
