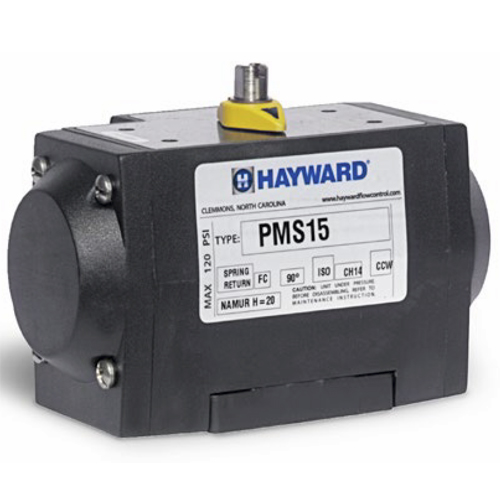

PMS Series Spring Return Pneumatic Actuator

Hayward PMS pneumatic actuator offers an air-to-air 2-piston rack & pinion design with manual override, position indicator, Namur-style mounting and cycle speed controls on all.

Key Features

• Housing: Polyamide
• Minimum air pressure: 80 PSI
• Maximum air pressure: 120 PSI
• Cycle time: 0.5 second (Typical)
• Air connections: 1/4" NPT
• Air to Spring Fail-Safe Operation
• Corrosion-resistant thermoplastic housing
• Permanently lubricated gear train
• Manual override
• Two-piston rack and pinion design
• Namur-style mounting
• Position indicator
• Lightweight
• ISO 5211 mounting base

Options

• Solenoid valves with optional voltages
• Auxiliary limit switch
• Cycle speed controls
• Positioners
